Organizations often confuse the power distribution unit and UPS functions. However, these devices serve distinct yet complementary roles in power management. A power distribution unit efficiently distributes power to IT equipment. For example, a Basic PDU offers straightforward power distribution. An Intelligent PDU provides advanced monitoring capabilities. Understanding their specific functions is crucial for building a reliable power infrastructure. Differentiating these roles ensures optimal system performance and continuous operation.

Key Takeaways

• PDUs distribute power to many devices. They organize power in server racks.
• UPSs provide backup power. They keep devices running during power outages.
• PDUs offer features like power monitoring. Some allow remote control of outlets.
• UPSs protect equipment from power problems. They guard against surges and voltage changes.
• Using both a PDU and a UPS is best. This creates a strong and reliable power system.
• A PDU is not just a power strip. It has advanced features for power management.
• A UPS alone is not a full power solution. It needs a PDU for good power distribution.

Understanding the Power Distribution Unit (PDU)

What Defines a Power Distribution Unit?

Basic Definition of a PDU

A power distribution unit (PDU) is a device that distributes electrical power to multiple pieces of equipment. It acts as a central hub for power delivery within a rack or data center. PDUs are more sophisticated than standard power strips. They manage and distribute power effectively to critical IT infrastructure.

Primary Purpose of a Power Distribution Unit

The primary purpose of a power distribution unit is to provide reliable and organized power to various devices. It ensures that each connected piece of equipment receives the necessary power. This prevents overloads and maintains operational stability. PDUs are essential for efficient power management in complex IT environments.

Core Functions of Power Distribution Units

Efficient Power Distribution

PDUs excel at distributing power efficiently. They take a single power input and divide it into multiple outlets. This allows many devices to draw power from one source. This organized approach reduces cable clutter and simplifies power management.

Outlet Management Capabilities

Many PDUs offer advanced outlet management. This includes the ability to monitor power consumption at each outlet. Some advanced models even allow remote control of individual outlets. Users can turn outlets on or off from a different location.

Circuit Protection Mechanisms

PDUs incorporate circuit protection. This safeguards connected equipment from electrical overloads. Built-in circuit breakers trip if current exceeds safe limits. This prevents damage to valuable IT assets.

Power Conditioning and Conversion

Some PDUs offer power conditioning features. They can filter out electrical noise and minor voltage fluctuations. This provides cleaner power to sensitive equipment. Certain specialized PDUs also perform power conversion, handling both AC and DC distributions.

Diverse Types of Power Distribution Units

Basic PDUs for Simple Distribution

Basic PDUs provide straightforward power distribution. They offer multiple outlets from a single input. These units are cost-effective for less critical applications. They primarily organize rack cabling.

Metered PDUs for Local Monitoring

Metered PDUs include a local display. This display shows aggregate power consumption in real-time. They help users monitor load levels. This aids in load balancing and prevents overloads.

Monitored PDUs for Remote Insights

Monitored PDUs offer advanced power monitoring. They track data center power distribution and identify fluctuations. These units provide real-time visibility into power usage. They often feature a web-based management interface for remote insights.

Switched PDUs for Remote Control

Switched PDUs combine metering with remote control. They allow users to turn individual outlets on or off remotely. This feature is useful for rebooting unresponsive equipment. They often integrate with SNMP for remote monitoring.

Intelligent PDUs with Advanced Features

Intelligent PDUs (iPDUs) represent the most advanced category. They offer comprehensive power management. This includes remote monitoring of energy consumption, voltage, and current per outlet. They also provide power control, environmental monitoring, and contribute to energy efficiency.

Benefits of Deploying a Power Distribution Unit

Organized Power Delivery in Racks

Deploying a power distribution unit brings significant advantages. It provides organized power delivery within server racks. This reduces cable clutter and simplifies power management. Equipment receives power efficiently and reliably.

Enhanced Monitoring of Power Usage

PDUs offer enhanced monitoring of power usage. They track real-time power consumption. This data helps administrators understand energy demands. It also assists in preventing overloads.

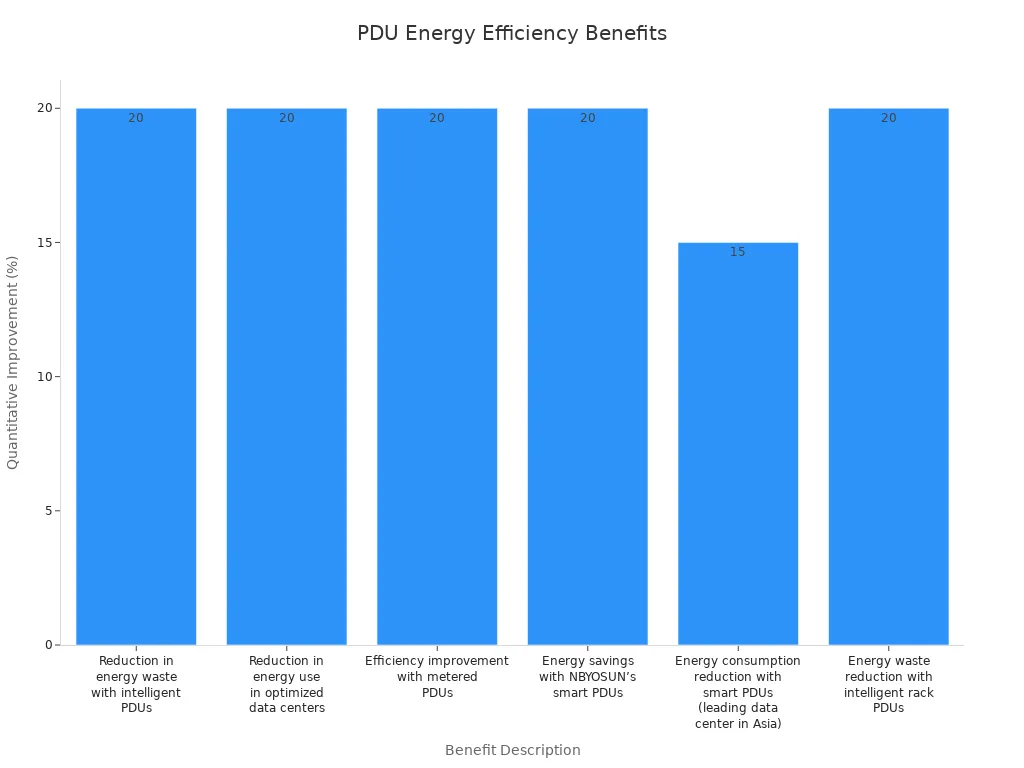

Improved Energy Efficiency Management

PDUs significantly improve energy efficiency management. Intelligent PDUs, for example, optimize energy use by minimizing waste. This can lead to a 20% reduction in overall energy use. Metered and monitored PDUs provide real-time data. This helps identify inefficiencies and optimize energy usage. Smart PDU solutions track energy usage and environmental conditions. This optimizes cooling systems and reduces energy waste. Some solutions show up to a 20% improvement in efficiency. Remote monitoring and control capabilities help identify and address energy waste. A leading data center in Asia achieved a 15% improvement in energy efficiency.

Remote Management and Control Options

Many PDUs offer remote management and control options. Administrators can monitor power status from any location. They can also remotely cycle power to individual outlets. This feature is crucial for managing equipment in remote or lights-out data centers.

Common Applications for Power Distribution Units

Data Centers and Server Racks

Power distribution units are essential in data centers and server racks. They distribute power to servers and networking equipment. They manage loads and enable redundancy. They also prevent overloads. PDUs often deliver power to remote power panels (RPPs). These panels then supply network hardware racks.

Network Closets and Communication Rooms

Network closets and communication rooms also benefit from PDUs. They distribute power to network equipment. This promotes continuous uptime and enhances reliability in these smaller spaces.

Industrial Control Systems Integration

Industrial facilities integrate PDUs into their control systems. They supply power to industrial machinery. This contributes to safe and efficient power distribution in demanding environments.

Edge Computing Environments

Edge computing environments rely on PDUs for power management. These distributed locations need reliable power for their localized IT infrastructure. PDUs ensure consistent power delivery to edge devices.

PDUs find essential use in many sectors:

• IT and Server Rooms: They power multiple devices and protect against failures.
• Telecommunications: They ensure stable and efficient power for critical network infrastructure.
• Healthcare Settings: They ensure critical medical equipment receives clean, consistent power.
• Critical Infrastructure: This includes hospitals, data centers, and emergency services, where uninterrupted power is vital.
• Enterprise Data Centers: They provide advanced power management and analytics.
• Colocation Facilities: They offer clients detailed power usage data and control.
• Smart Buildings: They manage power distribution and monitoring across various building systems.

The Role of Uninterruptible Power Supplies (UPSs)

What Constitutes a UPS?

Basic Definition of a UPS

An uninterruptible power supply (UPS) is an energy storage device. It uses an inverter as its main component. This system delivers stable voltage and frequency output. A UPS consists of an AC + DC charging + DC-AC inverter system.

Primary Purpose of an Uninterruptible Power Supply

The primary purpose of a UPS is to ensure continuous power for connected devices. It protects equipment from power interruptions. When mains power is available, the UPS channels electricity to the load. It also charges its internal battery. Rectifiers convert AC power to DC power. They supply the load after filtering and provide charging voltage to the battery. Inverters then convert DC power back to AC power. During a power outage, batteries immediately supply stored DC power to the inverter. The inverter converts this to AC power for connected devices. This ensures a continuous power supply.

Core Functions of UPS Systems

Battery Backup for Power Outages

UPS systems provide essential battery backup during power outages. They keep critical equipment running when the primary power source is lost. This seamless switch eliminates any effect of power loss. It ensures continuous operation.

Power Conditioning and Stabilization

UPS systems also condition and stabilize power. They act as a filter, protecting against sags, swells, and surges. They smooth out noisy power sources. This provides clean, stable, and consistent power. Modern UPS units regulate incoming mains voltage and maintain output voltage variation. They also stabilize output frequency.

Surge Protection for Connected Devices

A UPS offers crucial surge protection for connected devices. It safeguards against voltage surges and electromagnetic interference. This prevents equipment damage and downtime. UPS systems are vital for protecting critical infrastructure in hospitals, data centers, and industrial facilities. They ensure a continuous, clean power supply.

Types of UPS Systems Explained

Standby UPS for Basic Protection

A standby UPS offers basic protection. It is the most affordable option. This type provides surge protection and battery backup. It suits non-critical applications like home computers and small office equipment.

Line-Interactive UPS for Voltage Regulation

A line-interactive UPS provides better power conditioning. It regulates voltage fluctuations without switching to battery power. This makes it suitable for small to medium-sized businesses and sensitive electronics.

Online Double-Conversion UPS for Critical Loads

An online double-conversion UPS offers the highest level of power protection. It continuously converts AC to DC and then back to AC. This isolates equipment from power fluctuations. It is ideal for critical applications such as data centers, medical equipment, and industrial systems.

Benefits of Using a UPS

Continuous Power Availability During Disruptions

A UPS system ensures continuous power availability during disruptions. It provides an immediate power source when the main utility power fails. This seamless transition prevents any interruption to critical operations. Businesses maintain productivity and avoid costly downtime.

Protection Against Power Fluctuations and Sags

UPS systems actively shield sensitive electronics from power anomalies. They ensure pure and unfaltering electric power quality. These systems incorporate voltage regulators and surge protectors. This mitigates the risk of damaging voltage spikes or sags. They secure the operational stability of critical devices. Furthermore, intelligent UPS systems correct harmonic distortion and electrical noise. They deliver purer AC power to vital components like server units and medical devices. This safeguards both hardware integrity and the invaluable data they process.

Data Integrity Preservation and Loss Prevention

UPS systems play a crucial role in preserving data integrity and preventing loss. They provide enough time for systems to shut down gracefully during an outage. This prevents corrupted files and lost work. In the industrial sector, UPS systems are crucial for preventing costly downtime, damage to machinery, and data loss. This is especially true in environments relying on sensitive equipment like PLCs and CNC machines. Even brief outages or voltage fluctuations can halt production and compromise data integrity. The market share of industrial UPS systems, around 57% in 2024, underscores their importance. They maintain productivity, safety, and data integrity. Similarly, in data centers and cloud computing, UPS systems are essential for continuous operations. They prevent data loss and financial losses that can result from power disruptions.

Equipment Lifespan Extension and Damage Prevention

Power fluctuations and surges can significantly shorten the lifespan of electronic equipment. A UPS protects devices from these harmful events. It delivers stable and clean power. This extends the operational life of valuable hardware. It also reduces the need for frequent repairs or replacements.

Common UPS Applications

Critical Servers and Storage Systems

Critical servers and storage systems heavily rely on UPS protection. These devices store vital information and run essential applications. A UPS ensures their continuous operation. It prevents data corruption and system crashes during power disturbances. This includes IT infrastructure, servers, and storage systems.

Network Devices and Telecommunications

Network devices and telecommunications equipment require constant power. Routers, switches, and communication systems need UPS backup. This maintains connectivity and communication channels. It supports enterprise networks, office networks, and server rooms.

Medical Equipment and Healthcare Facilities

Medical facilities critically rely on UPS systems. Operating rooms, surgical procedures, and diagnostic equipment need uninterrupted power. This includes lighting tools, medical machinery, imaging devices, and robotic surgery equipment. A UPS ensures patient safety and continuous medical care.

Security Systems and Surveillance

Security systems and surveillance equipment also benefit from UPS protection. Cameras, access control systems, and alarm systems must remain operational. A UPS ensures these systems continue to function during power outages. This maintains safety and security.

PDU vs. UPS: Key Distinctions in Power Management

Organizations often need to understand the fundamental differences between power distribution units (PDUs) and uninterruptible power supplies (UPSs). These devices serve distinct roles in power management. They are not interchangeable. Recognizing their specific functions helps build a robust and reliable power infrastructure.

Fundamental Functional Differences

Power Source vs. Power Delivery

A primary distinction lies in their core function. A UPS manages the power source. It provides backup power when the main utility fails. It acts as a bridge, ensuring a continuous power supply. Conversely, a power distribution unit focuses on power delivery. It takes power from a source, like a UPS or a wall outlet, and distributes it to multiple devices. It organizes and manages the flow of electricity within a rack or cabinet.

Protection Capabilities and Scope

UPS systems offer comprehensive protection against various power anomalies. They guard against outages, voltage fluctuations, surges, and sags. Their scope includes maintaining power continuity and conditioning the electrical supply. PDUs, while offering some protection like circuit breakers, primarily focus on safe and efficient power distribution. They do not provide backup power. Their protection capabilities are generally limited to preventing overloads at the outlet level.

Primary Objectives and Operational Goals

The main objective of a UPS is to ensure uninterrupted operation for critical equipment. It prevents data loss and system downtime during power disturbances. Its operational goal is continuous power availability. A power distribution unit aims for efficient and organized power delivery. It seeks to optimize power usage, monitor consumption, and provide remote management capabilities. Its operational goal is to streamline power distribution and enhance manageability within an IT environment.

The table below highlights these key functional differences:

Application Scenarios and Use Cases

Understanding when to use a PDU versus a UPS is crucial for effective power management. Each device excels in different scenarios.

When a Power Distribution Unit is Sufficient

A power distribution unit is sufficient when the primary concern involves efficient power distribution. This applies to equipment like servers, network switches, and routers. Organizations use PDUs when they desire overload protection, remote monitoring, and energy management for electrical resources. Application scenarios include data centers, server rooms, and communication stations. The goal here is to optimize power infrastructure for resilience, efficiency, and manageability. For instance, a basic PDU can organize power in a small network closet where power outages are rare or non-critical.

When a UPS is Absolutely Essential

A UPS becomes mandatory when short-term electricity is needed. This allows for safely saving work and shutting down systems during a main power source failure. Safeguarding against data loss and hardware damage from power outages, voltage spikes, and drops is crucial. Continuous operation of critical systems requires a UPS, offering battery backup and voltage stabilization. Application scenarios involve computer systems, network equipment, and medical devices. In these environments, power-related issues can lead to data corruption or physical damage. For example, a hospital operating room cannot afford even a momentary power interruption.

Comparative Overview of Features

Feature Comparison: Power Distribution Unit vs. UPS

PDUs offer features centered on power distribution and management. These include multiple outlets, circuit breakers, and often monitoring capabilities (metered, monitored, switched, intelligent). Some advanced PDUs provide remote control over individual outlets. UPS systems, on the other hand, focus on power continuity and quality. Their features include battery backup, surge protection, voltage regulation, and power conditioning. Online double-conversion UPS units offer the highest level of power quality. They continuously convert power to isolate connected equipment.

Cost Implications and Investment Considerations

The cost of a PDU generally ranges from relatively inexpensive for basic models to moderately priced for intelligent units. Their investment primarily covers organized power delivery, monitoring, and remote management. UPS systems represent a more significant investment. Their cost varies widely based on capacity, runtime, and technology (standby, line-interactive, online). The investment in a UPS covers critical power protection, ensuring business continuity and preventing costly downtime or data loss. Organizations weigh the cost against the potential financial impact of power disruptions.

Choosing the Right Power Solution: PDU or UPS?

Selecting the correct power solution requires careful evaluation. Organizations must understand their specific needs. This ensures optimal performance and protection for IT infrastructure.

Assessing Your Power Requirements

Identifying Critical Loads

Identifying critical loads is the first step. This includes understanding the power consumption of IT equipment. Facilities must also consider cooling systems and other infrastructure. These systems keep optimal temperatures. Future growth also impacts exact energy consumption. Data centers typically have their own generators for emergencies. They also use UPS systems for continuous power flow during short interruptions. Metrics like Power Usage Effectiveness (PUE) measure energy efficiency.

Evaluating Power Quality Needs

Evaluating power quality needs is crucial. Sensitive equipment requires clean, stable power. Fluctuations can cause damage or data loss. A thorough assessment helps determine the level of power conditioning required.

Understanding Downtime Tolerance

Organizations must understand their downtime tolerance. Some systems can withstand brief interruptions. Others require continuous operation. This tolerance level directly influences the choice between a PDU, a UPS, or a combination of both.

Decision Factors for Power Distribution Unit Selection

Number and Type of Outlets Required

Consider the number and type of outlets required. Ensure sufficient outlets of the correct type, such as C13 or C19. Match the PDU to the required power type, like 16A or 30A. Decide between AC or DC power based on efficiency and compatibility. Choose connectors that match devices. This prevents inefficiencies or damage.

Monitoring and Management Features

Evaluate monitoring and management features. Consider if outlet-level monitoring or switching is necessary. Check for environmental monitoring capabilities, such as temperature and humidity. Advanced PDUs provide remote monitoring of power usage. They also offer load balancing and individual outlet control.

Physical Form Factor and Mounting

Physical form factor and mounting options are important. PDUs come in various mounting options. These include rack-mounted, wall-mounted, and floor-standing. They also have different form factors like slimline or compact. Select a PDU that fits the installation environment. The PDU’s total capacity must meet current and future power needs. Verify that each outlet, load group, and phase can handle the connected hardware’s load.

Decision Factors for UPS Selection

VA Rating and Runtime Requirements

Know the power source’s VA or watt rating. This helps narrow down UPS selection. Accurately determine the necessary runtime. This significantly impacts the total cost.

UPS Topology (Standby, Line-Interactive, Online)

Choose the appropriate UPS topology. Standby UPS offers basic protection. Line-interactive UPS provides voltage regulation. Online double-conversion UPS offers the highest level of protection for critical loads.

Scalability and Redundancy Options

Consider scalability and redundancy options. Look for units that allow capacity expansion. This can happen with power or battery modules. It avoids needing additional hardware. Assess the power environment. Determine how the new UPS system will be installed. Consider available physical space. Plan how utility power will reach equipment. Power management software is essential for saving work. It also properly shuts down connected equipment during outages.

Integrating Power Distribution Units and UPSs for Optimal Reliability

Organizations achieve optimal reliability in their power infrastructure by integrating Power Distribution Units (PDUs) and Uninterruptible Power Supplies (UPSs). These devices work together, creating a robust system that ensures continuous operation and protects critical equipment.

The Synergy of Combined Solutions

Enhanced Reliability and Uptime

Combining UPS and PDU devices significantly enhances system reliability and uptime. Redundant power paths ensure continuous operation during outages or maintenance. Automatic Transfer Switches (ATS) facilitate seamless transitions between power sources, preventing disruptions. UPS units provide stable backup power, while PDUs manage efficient distribution and source switching. Advanced monitoring features in PDUs offer real-time insights and remote management, minimizing downtime. Dual power PDUs eliminate single points of failure, allowing maintenance without interrupting operations. Circuit breakers and fuses in PDUs protect infrastructure from electrical overloads, enhancing safety. Load balancing across dual power feeds improves system stability and fault tolerance. Optimized energy usage supports continuous operation in high-demand environments. Power reliability is the leading cause of data center downtime, accounting for 54% of impactful outages. Combining UPS and PDU devices can reduce downtime by up to 25% by creating redundant power paths.

Comprehensive Power Protection Strategy

A comprehensive power protection strategy emerges when organizations deploy both UPS and PDU systems. A UPS provides backup power during outages and regulates voltage. A PDU manages power distribution to multiple devices. Deploying both ensures both backup power and efficient distribution. This creates a strong power system that reduces downtime and protects sensitive equipment from electrical hazards and voltage problems. This layered approach safeguards against a wider range of power issues than either device could address alone.

Scalability and Flexibility in Infrastructure

Integrating PDUs and UPSs also provides scalability and flexibility for IT infrastructure. Organizations can expand their power capacity by adding more PDUs or UPS modules as their needs grow. This modular approach allows for easy upgrades and reconfigurations without overhauling the entire power system. It supports dynamic environments where power demands frequently change.

Best Practices for Seamless Integration

Proper Sizing and Strategic Placement

Proper sizing and strategic placement are crucial for seamless integration. Organizations must accurately assess the power requirements of all connected equipment. They select UPS units with adequate VA ratings and runtime. They also choose PDUs with sufficient outlets and capacity. Strategic placement involves positioning UPS units for optimal cooling and accessibility. They install PDUs within racks to minimize cable clutter and maximize efficiency.

Redundancy Considerations for Critical Systems

Redundancy considerations are vital for critical systems. Data centers frequently implement redundant UPS configurations, such as N+1 or 2N, to enhance resilience and prevent single points of failure. This means having extra UPS capacity or completely separate UPS systems. Organizations also use dual power PDUs to provide redundant power feeds to critical equipment. This ensures that if one power path fails, another immediately takes over.

Integrated Monitoring and Management Systems

Integrated monitoring and management systems are essential for effective power infrastructure. Incorporating remote monitoring capabilities and automation features helps streamline maintenance and improve response times. UPS systems connect with control systems for monitoring and management. Compatibility with Building Management Systems (BMS) is essential for comprehensive facility management. This allows administrators to monitor power status, receive alerts, and manage power settings from a centralized platform.

Real-World Integration Scenarios

Small Business Server Room Setup

In a small business server room, a common integration scenario involves a single line-interactive UPS protecting a server and network switch. A basic or metered PDU then distributes power from the UPS to these devices. This setup provides essential backup power and organized distribution for critical small business operations.

Enterprise Data Center Power Architecture

Enterprise data centers employ complex power architectures. UPS solutions are integrated by stacking them with PDUs to manage and distribute power effectively. Integration extends to backup generators, ensuring continuous power supply during outages. UPS systems connect with control systems for monitoring and management. Adherence to standards like IEEE, UL, and IEC is crucial for safety and reliability. Regulatory mandates often require UPS deployment in sensitive sectors such as healthcare and finance. Data centers frequently implement redundant UPS configurations, such as N+1 or 2N, to enhance resilience and prevent single points of failure. Proper integration includes regular testing, battery management, and firmware updates to maintain system integrity.

High-Density Edge Computing Deployments

High-density edge computing deployments also benefit from integrated PDU and UPS solutions. These distributed environments often have limited space and require robust power protection. Compact, rack-mounted UPS units provide backup power to edge servers and networking equipment. Intelligent PDUs then distribute power, offering remote monitoring and control capabilities. This ensures reliable operation of critical applications at the network edge.

Common Misconceptions and Clarifications

The Power Distribution Unit as a Simple Power Strip

Beyond Basic Extension Cords

Many people mistakenly view a power distribution unit (PDU) as merely a sophisticated power strip. However, PDUs offer capabilities far beyond basic extension cords. Unlike most power strips, which typically lie on the ground, manufacturers design PDUs specifically for rack or cabinet mounting, either horizontally or vertically. While power strips often include surge protection, PDUs primarily focus on overload protection and efficient power distribution. Data centers typically use separate surge arresters for comprehensive surge protection.

Advanced Features and Intelligence

PDUs incorporate advanced features that differentiate them significantly from simple power strips. Network-enabled PDUs allow remote control, enabling users to power cycle equipment by turning outlets on or off. Metering capabilities provide crucial data for energy management and can monitor environmental factors like temperature. These intelligent PDUs can also notify IT staff about approaching circuit capacity limits or other thresholds. PDUs offer a wider variety of outlets and can have significantly more outlets, sometimes up to 40 or more for vertical mounts, compared to typical power strips. They also support higher amperages and include built-in circuit breakers, unlike most power strips, which are rated for 15-20 amps.

The UPS as a Complete Power Solution

The Need for Effective Power Distribution

Some organizations believe a UPS alone constitutes a complete power management solution. This perspective overlooks the critical need for effective power distribution. A UPS primarily provides backup power and power conditioning. It does not inherently offer the granular control and monitoring capabilities necessary for efficient power delivery to multiple devices within a rack. Without a PDU, managing power to individual components becomes challenging, even with a UPS providing the source.

Limitations of UPS Alone for Management

A UPS alone has limitations as a complete power management solution. Its total energy storage may not provide sufficient running time for a proper system shutdown in all scenarios. For instance, a UPS rated at 450 watts, but actually delivering 325 watts, might fail to support a system drawing over 600 watts under maximum load, leading to immediate shutdown. Even under average load (280 watts), the system might only persist for a short duration. If the UPS unit itself fails, the entire system will shut down. Furthermore, a UPS is ineffective without a properly functioning battery; if the battery is discharged, disconnected, or dead when incoming power is lost, the system will also shut down.

Cost vs. Value in Power Infrastructure

Initial Investment vs. Long-Term Benefits

Organizations often weigh the initial investment in robust power infrastructure against perceived costs. While the upfront expenditure for high-quality PDUs and UPS systems can seem substantial, the long-term benefits far outweigh these initial costs. Robust infrastructure offers rapid scaling, reliability, and faster innovation. It enables businesses to handle increased demand without manual intervention, supports agility, and facilitates new feature releases. Consistent performance and quick application response build customer trust and reduce support burdens.

Risk Mitigation and Business Continuity

Investing in a comprehensive power infrastructure significantly mitigates risks and ensures business continuity. Neglecting infrastructure leads to compounding costs, as initial savings from avoiding investment are quickly negated by system failures and emergency fixes. Downtime and outages cause lost revenue, damaged customer trust, and halted development. Unpatched systems and misconfigured services create security vulnerabilities, leading to breaches and lasting damage. Robust power infrastructure provides resilience against these issues, protecting data, extending equipment lifespan, and ensuring uninterrupted operations.

Power Distribution Units (PDUs) efficiently distribute power. Uninterruptible Power Supplies (UPSs) provide essential backup. These devices have distinct roles. However, they are interdependent for optimal power management. Organizations must adopt a holistic approach to power infrastructure design. This ensures comprehensive protection.

• PDUs manage power delivery.
• UPSs guarantee power continuity.

Combining PDU and UPS solutions achieves true power reliability and resilience. This strategy safeguards critical operations.

FAQ

What is the primary difference between a PDU and a UPS?

A PDU distributes power to multiple devices. A UPS provides backup power during outages. It also conditions the power supply. They serve distinct but complementary roles in power management.

Can a PDU provide backup power during an outage?

No, a PDU does not store power. It only distributes power from an existing source. A UPS provides battery backup to keep equipment running when the main power fails.

Is it necessary to use both a PDU and a UPS in a data center?

Yes, using both is highly recommended. A UPS ensures continuous power. A PDU efficiently distributes that power to individual devices. This combination creates a robust and reliable power infrastructure.

How do intelligent PDUs contribute to energy efficiency?

Intelligent PDUs monitor power consumption at the outlet level. They provide data for optimizing energy use. They can also remotely control power to individual devices. This helps reduce waste and improve overall efficiency.

Which type of UPS offers the highest level of protection for critical equipment?

An online double-conversion UPS offers the highest protection. It continuously converts AC to DC and back to AC. This isolates equipment from all power fluctuations. It is ideal for critical applications like data centers.

Does a UPS protect against all types of power problems?

A UPS protects against many power issues. These include outages, surges, sags, and voltage fluctuations. However, it does not replace the need for proper grounding or comprehensive electrical system design.

How does a PDU help manage power in server racks?

A PDU organizes power delivery within server racks. It reduces cable clutter and simplifies power management. It also provides multiple outlets for various devices. This ensures efficient and reliable power distribution.
