A Power Distribution Unit primarily distributes power to multiple devices. A UPS, conversely, provides critical backup power during outages. Both are essential for reliable operations in 2025. Downtime costs businesses significantly; 44% of organizations report hourly downtime costs exceeding $1 million. This makes continuous power crucial.

A Basic PDU ensures organized power delivery. An Intelligent PDU adds monitoring and control capabilities. A UPS ensures power continuity, preventing data loss and operational interruptions. Together, they create a robust power infrastructure for uninterrupted operations.

Key Takeaways

• A PDU distributes power to many devices. It acts like a power strip.
• A UPS gives backup power when the main power goes out. It uses batteries.
• PDUs help organize power cables. They make power delivery efficient.
• UPS systems protect devices from bad power. This includes power surges and drops.
• Businesses often need both a PDU and a UPS. They work together for strong power.
• A UPS protects important equipment. It stops data loss and system shutdowns.
• PDUs and UPSs together make power reliable. This helps businesses stay open.
• Choose a PDU for power distribution. Choose a UPS for power protection.

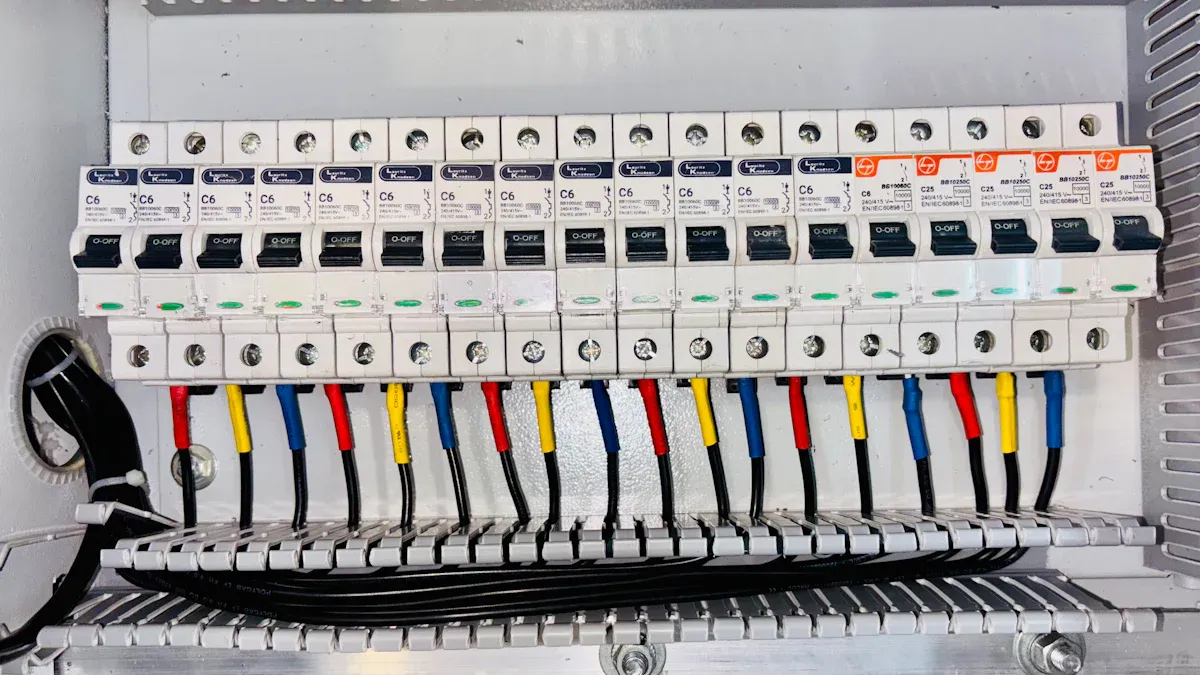

Understanding the Power Distribution Unit (PDU)

What is a Power Distribution Unit?

Core Function of a Power Distribution Unit

A Power Distribution Unit (PDU) serves as a reliable electrical device. It distributes power from a single source to multiple pieces of IT equipment. This device ensures organized and efficient power delivery within a rack or cabinet. PDUs are fundamental for managing power in various environments, from small network closets to large data centers.

Types of Power Distribution Unit Outlets

PDUs come equipped with various outlet types to accommodate diverse equipment needs. These include:

• NEMA Sockets: Common in North America, such as NEMA 5-15R for up to 15 amps and NEMA 5-20R for up to 20 amps.
• IEC Sockets: Widely used for IT equipment, including IEC C13 for lower power devices and IEC C19 for higher power devices like servers.
• Schuko Sockets: Prevalent in European countries, featuring a grounding pin.
• UK Sockets: Adhering to the BS 1363 standard with a rectangular shape.
• Universal Sockets: These offer a mix of socket types to support international standards.
• Locking Sockets: These include mechanisms to prevent accidental disconnections, enhancing reliability.

Key Features and Benefits of a Power Distribution Unit

Efficient Power Distribution

PDUs optimize power delivery within IT racks. They offer power ranges from 2kW to 22kW per cabinet. Users can choose between single-phase and 3-Phase power distribution options. Input capacities typically range from 16 A to 60 A. Most models also include branch circuit protection, safeguarding connected equipment.

Rack-Mount Power Distribution Unit Solutions

Many PDUs are designed for rack mounting. This integration allows for seamless installation within server racks. Rack-mount solutions help maintain an organized and efficient power infrastructure. Some models feature RamLock mechanical cable locking for secure connections.

Cable Management with a Power Distribution Unit

PDUs significantly contribute to better cable management. They consolidate power connections, reducing cable clutter. This organization improves airflow, simplifies maintenance, and minimizes the risk of accidental disconnections.

Types of Power Distribution Units

Basic Power Distribution Unit

A basic PDU provides straightforward power distribution. It acts as an electrical strip, delivering unfiltered power from a source to IT equipment. This type offers a reliable and cost-effective solution for fundamental power needs.

Metered Power Distribution Unit

A metered PDU includes a digital LCD meter. This meter provides real-time local load monitoring. It helps prevent potential power issues and aids in calculating Power Usage Effectiveness (PUE). Metering at the inlet helps determine power usage and available capacity at the rack. This assists in equipment provisioning and avoids circuit overloads.

Monitored Power Distribution Unit

A monitored PDU offers similar features to a metered PDU but adds remote capabilities. Users can access load levels from anywhere via a network connection. This type is highly effective in large data centers for detailed monitoring and analytics. It optimizes power usage and cooling. Financial institutions also use them to ensure critical systems have stable power.

Switched Power Distribution Unit

A switched PDU provides monitoring features and the ability to remotely turn outlets on or off. This allows for remote power schedule management by outlet. Switched PDUs enable remote power management, allowing users to control devices without physical access. This reduces downtime and operational costs. They are highly suitable for remote facilities, allowing power management across multiple locations from a centralized interface.

Automatic Transfer Switch (ATS) Power Distribution Unit

An Automatic Transfer Switch (ATS) Power Distribution Unit enhances power redundancy. It manages multiple power sources, connecting to both primary and secondary supplies. This setup ensures continuous power delivery to equipment during maintenance or unexpected failures. The ATS PDU automatically transfers the load from the primary to the secondary power source upon detecting a failure. This ensures a seamless transition and minimizes downtime.

Ideal Applications for a Power Distribution Unit

Data Centers and Server Rooms

Data centers and server rooms rely heavily on efficient power management. A Power Distribution Unit (PDU) is crucial in these environments. PDUs distribute electricity to servers, networking equipment, and storage systems within server racks. They do this after voltage conversion. Metered PDUs offer real-time power usage insights. This helps data center operators optimize load balancing and energy efficiency. PDUs address the need for both metered and unmetered power options for individual IT equipment racks. They support various phases (single-phase or three-phase), amperages, and voltages. This meets the specific needs of critical IT equipment. PDUs provide a sufficient number of outlets, often ranging from 8 to 54. They also offer various receptacle types, including combination outlets for flexibility. Features like color-coded alternating outlets simplify circuit balancing and prevent overloading. Locking outlets are essential. They prevent accidental disconnections of power cords from IT equipment. High-temperature grade PDUs ensure reliability in environments with elevated temperatures. Monitoring and management features include hot-swappable monitoring devices and IP aggregation for cost reduction.

Network Closets

Network closets often face unique power distribution challenges. PDUs help mitigate common issues such as power surges, inefficiency, low uptime, and electromagnetic interference (EMI). These problems can diminish the performance of industrial electrical systems. PDUs facilitate changing power configurations (AC to AC, DC to DC, AC to DC, DC to AC) and voltage levels. This matches the specific requirements of electronic equipment, like those in communication networks. PDUs improve power quality. They filter out issues such as voltage spikes, surges, sags, high-frequency noise, and transients. These issues can cause system damage and performance problems. PDUs incorporate features like voltage regulation, transient impulse protection, and noise suppression. They also enable power control. This occurs through features like remote Ethernet signals, breakers, switches, and automated switching between power sources. This enhances safety, redundancy, and reliability. PDUs include EMI filters. These filters prevent electromagnetic interference from distorting electrical signals. Signal distortion can lead to reduced equipment performance or system failure.

Industrial Control Systems

Industrial control systems demand stable and reliable power. PDUs provide the necessary power conditioning and distribution. They protect sensitive equipment from voltage fluctuations and electrical noise. This ensures continuous operation in harsh industrial settings. The robust design of many PDUs makes them suitable for environments with high temperatures or vibrations.

Office IT Infrastructure

Office IT infrastructure benefits from PDUs by organizing power delivery. PDUs consolidate power connections for workstations, servers, and networking gear. This reduces cable clutter and simplifies power management. Basic and metered PDUs help prevent circuit overloads. They ensure a stable power supply for essential office equipment.

Understanding Uninterruptible Power Supplies (UPSs)

What is a UPS?

Core Purpose of a UPS: Power Backup

An Uninterruptible Power Supply (UPS) provides emergency power to a load when the main power source fails. A UPS offers near-instantaneous protection from power interruptions. This ensures continuous operation of critical equipment. Its primary function is to prevent data loss, equipment damage, and operational downtime during outages or fluctuations.

UPS Battery Technology

UPS systems use advanced battery technology to store energy. These batteries, often lead-acid or lithium-ion, supply power to connected devices during an outage. The battery charger maintains a full charge, ensuring the UPS is always ready. The battery type impacts the UPS’s runtime and lifespan.

Key Features and Benefits of a UPS

UPS Surge Protection

A UPS offers crucial surge protection. It shields connected equipment from sudden, damaging voltage spikes. These surges can occur due to lightning or utility grid fluctuations. Surge protection prevents hardware damage and extends equipment lifespan.

UPS Voltage Regulation

Many UPS systems include voltage regulation. This feature, often an Automatic Voltage Regulator (AVR), adjusts incoming power to a stable level. It corrects minor power fluctuations like sags and swells without switching to battery power. This protects equipment from inconsistent power quality.

UPS Power Conditioning

UPS systems perform power conditioning. They filter out electrical noise, harmonics, and other distortions from utility power. This ensures a clean, stable power supply reaches sensitive electronic devices. Clean power is vital for optimal performance and longevity.

Automatic Shutdown Capabilities of a UPS

Modern UPS units often feature automatic shutdown capabilities. When a power outage occurs and battery backup runs low, the UPS can signal connected computers or servers. This prompts an orderly shutdown. This prevents data corruption and ensures safe system closure.

Types of UPS Systems

Several types of UPS systems exist, each offering different levels of protection and features.

Standby (Offline) UPS

A Standby UPS, also known as an Offline UPS, is the most basic and affordable type. It stays idle until main power fails. Then, an automatic transfer switch activates, and the system switches to battery power. This process takes up to 10 milliseconds. This type offers battery backup and light surge protection. However, it provides only basic surge suppression. This leaves connected equipment vulnerable to many power disturbances. Standby UPS systems are generally inadequate for mission-critical data center applications. They are best for home offices and small devices.

Line-Interactive UPS

A Line-Interactive UPS offers improved efficiency and voltage regulation. It maintains the inverter in line, redirecting the battery’s DC current path from charging to supplying power when utility power is lost. This system uses an electronic converter and a multi-tap autotransformer. This allows it to smooth minor power glitches by synthesizing missing AC cycles. The Automatic Voltage Regulator (AVR) is key here. If incoming current is abnormal but within the AVR’s specified range, the voltage regulator will either boost or buck the voltage to a normal level. This allows for continuous voltage regulation without relying on the battery. Line-interactive UPS systems suit environments with frequent power fluctuations.

Online (Double-Conversion) UPS

An Online UPS, or Double-Conversion UPS, is the most common and reliable type. It uses a ‘double conversion‘ method. It rectifies AC input to DC, passes it through a battery, and then converts it back to AC for protected equipment. The inverter is always on, providing clean AC power with no transfer time. This continuous double conversion process significantly enhances reliability, reducing downtime. Modern double-conversion UPS systems boast efficiencies exceeding 90%. They also include an automatic emergency bypass feature. This ensures critical loads continue to receive power even during an internal system failure. Online UPS systems protect against all major interruptions.

Modular UPS

Modular UPS systems offer significant advantages in scalability and maintenance. Businesses can start with current power needs and easily add modules as demand grows. This minimizes upfront costs and maximizes flexibility. Modular UPS maintenance is simplified because modules can be removed or inserted without shutting down the entire system. This hot-swappable capability is vital for critical applications. It allows for continuous power protection during module servicing or replacement, enhancing system availability and reducing repair time. This design also allows for better efficiency by adding modules to handle scalable loads.

Ideal Applications for a UPS

Critical Servers and Storage

Uninterruptible Power Supplies (UPS) are indispensable for critical servers and storage systems. They protect sensitive electronics like servers and network equipment. A UPS prevents unexpected shutdowns of operating systems and virtual machines. It also stops incomplete data writes, which can lead to corruption or application errors. Interrupted database transactions, which compromise data integrity, are also avoided. Furthermore, a UPS eliminates prolonged reboot sequences and diagnostics after power is restored. It safeguards hardware components such as SSDs, RAID controllers, or file systems from damage.

Battery-powered UPS systems provide immediate energy during primary power source failures. They stabilize voltage fluctuations and offer surge protection. This capability ensures servers and network infrastructure remain operational during outages. This makes UPS systems a long-standing staple in data centers. A UPS acts as an electrical buffer, supplying stored energy during blackouts, brownouts, or voltage drops. This allows for continued operation or graceful shutdown. Modern UPS systems also include surge protection, voltage regulation, and communication protocols for integration with server OS-level power management.

Medical Equipment

Medical facilities rely heavily on continuous power for patient care. UPS systems ensure uninterrupted power to vital medical equipment. This includes ventilators, heart monitors, and life support machines. This is crucial for patient safety and continuity of care. They safeguard sensitive devices like oxygen concentrators, ultrasound machines, and MRI scanners. This protection prevents damage, data loss, mechanical failure, and calibration issues during power outages.

UPS systems maintain the integrity and security of patient records. They ensure the continuous operation of electronic health record systems. This prevents data loss and ensures accessibility. UPS units provide immediate backup power, bridging the gap until generators activate. This prevents any disruption to critical medical equipment and systems. They protect against various power issues. These include voltage surges, spikes, sags, total power failure, and frequency differences. This ensures a stable power supply. UPS systems for healthcare meet specific regulatory requirements and safety standards. They combine robust backup power solutions with improved energy efficiency. The UPS solution must handle the inrush current and meet the overload demands of various medical devices.

Telecommunications Systems

Telecommunications systems require constant power to maintain connectivity. A UPS ensures that communication networks remain operational during power disturbances. This includes cell towers, data switches, and routing equipment. It prevents service interruptions for phone, internet, and emergency services. This continuous power is vital for public safety and business operations.

Point-of-Sale Systems

Point-of-Sale (POS) systems are essential for retail and hospitality businesses. A UPS protects these systems from power outages. It prevents transaction loss and ensures business continuity. This allows businesses to process sales even when the main power fails. This avoids financial losses and maintains customer satisfaction.

Power Distribution Unit vs UPS: A Direct Comparison

Businesses often confuse Power Distribution Units (PDUs) and Uninterruptible Power Supplies (UPSs). Both devices manage power, but they serve distinct purposes. Understanding their differences helps build a robust power infrastructure.

Fundamental Differences in Function

Power Delivery vs. Power Continuity

A primary distinction lies in their core functions. A Power Distribution Unit distributes power to equipment. It uses multiple connection points to supply electricity to IT hardware within a data center. Conversely, a UPS system provides backup power. It uses stored batteries to offer power during an outage.

The PDU ensures all equipment receives power. It can also offer monitoring and remote control. The UPS guarantees continuous operation for critical applications during power loss. It kicks on automatically, typically using batteries or supercapacitors.

Role in the Power Chain

Each device plays a specific role in the power chain. PDUs are essential for distributing a site’s power to individual devices. They convert one or a few power inputs into many power outputs, typically around eight. A PDU distributes reliable network power to multiple devices. It does not generate power. Instead, it delivers AC or DC power from sources like a UPS, a generator, or utility power to remote equipment.

An Uninterruptible Power Supply (UPS) provides power for equipment like computers and telecommunication devices. It offers emergency power backup and protects devices from power issues. UPS systems are crucial because mains electricity can be unreliable. It can have input power failures, voltage spikes, sags, noise, and harmonic distortion. Unlike common emergency power systems or standby generators, a UPS provides nearly instantaneous protection from power interruptions. It uses energy stored in batteries. Key components of a UPS include batteries, a rectifier, an inverter, and a static bypass switch.

Key Distinctions

Battery Backup Capability

The most significant distinction is battery backup. A UPS provides backup power during outages. It uses internal batteries to keep devices running. A PDU does not offer battery backup. It simply distributes power from its source. If the source power fails, devices connected only to a PDU lose power.

Power Conditioning Features

UPS systems excel at power conditioning. They protect devices from various power anomalies. These include voltage spikes, sags, and electrical noise. Many UPS units include surge protection and voltage regulation. PDUs primarily distribute power. Some advanced PDUs offer basic surge protection, but they do not provide the comprehensive power conditioning of a UPS.

Cost and Complexity

UPS systems are generally more complex and expensive than PDUs. Their internal components include batteries, inverters, and rectifiers. These add to the cost and design complexity. Basic PDUs are simpler devices. They function much like advanced power strips. Their cost reflects this simpler design. Even advanced PDUs with monitoring features remain less complex than most UPS systems.

Installation and Maintenance

UPS systems require careful installation and regular maintenance. They are essential in data centers to prevent disruptions from power anomalies. Even brief interruptions can cause IT systems to crash. Critical success factors for power backup include providing UPS power to critical loads. They also involve designing for UPS reliability and availability. Determining appropriate UPS battery runtimes is also important. Data centers often incorporate redundant electrical and mechanical components/systems, such as N+1 or 2N designs. This balances cost and reliability.

Regular maintenance is crucial for UPS systems. It ensures reliability, availability, and top performance. This prevents issues before they become significant. It also extends the system’s lifespan. Proper maintenance optimizes UPS efficiency. It reduces energy consumption, lowers operational costs, and minimizes downtime and equipment damage. Best practices include meticulous documentation of specifications, installation, battery information, and maintenance history. Establish a regular maintenance routine. This includes annual temperature/humidity checks and full battery inspection. Biannual or semi-annual checks involve testing switches, breakers, fans, and cleaning. Monthly checks include visual inspection and battery voltage checks. Understand the battery chemistry (VRLA, lithium-ion, wet cell). Each type has unique lifespan, maintenance needs, and failure modes. Replace VRLA batteries every three to five years. Regularly test and monitor battery voltage levels to detect potential issues early. PDUs, by contrast, generally have simpler installation and maintenance requirements.

When to Choose a Power Distribution Unit or a UPS

Prioritizing Power Distribution Needs

Choose a PDU when your primary need is efficient power distribution. This applies when you have many devices needing power from a single source. PDUs help organize cables and manage power within racks. They are ideal for environments where the incoming power supply is already stable. They also suit situations where brief power interruptions are acceptable.

Prioritizing Power Protection Needs

Choose a UPS when power continuity and protection are critical. This applies to sensitive equipment that cannot tolerate any power interruption. UPS systems protect against data loss, hardware damage, and operational downtime. They are essential for critical servers, medical equipment, and telecommunications systems. These systems require continuous, clean power.

The Synergy: Using Power Distribution Units and UPSs Together

Businesses achieve maximum power resilience by combining Uninterruptible Power Supplies (UPSs) and PDUs. These two components work in tandem, creating a robust power infrastructure. This integrated approach ensures continuous operation and protects critical equipment from power disturbances.

Building a Resilient Power Infrastructure

A resilient power infrastructure forms the backbone of modern IT operations. It safeguards against unexpected power events. Integrating dual power PDU systems with UPS units significantly enhances reliability. This combination ensures stable power delivery during outages or fluctuations. This integration also simplifies management through monitoring tools, reducing downtime and protecting sensitive devices.

UPS for Primary Power Protection

A UPS serves as the primary line of defense against power interruptions. It provides instantaneous backup power when the main utility fails. This allows critical systems to continue running without disruption. The UPS also conditions incoming power, filtering out surges, sags, and noise. This protects sensitive electronics from damage and ensures a clean power supply.

Power Distribution Unit for Efficient Power Distribution

A PDU efficiently distributes the conditioned power from the UPS to individual pieces of equipment within a rack. It takes the single or dual outputs from the UPS and provides multiple outlets. This allows for organized and manageable power delivery. PDUs also offer features like metering and remote control, which further enhance power management capabilities. To mitigate risks from power interruptions, facilities deploy redundant data center power systems. These systems incorporate automatic transfer switches (ATS) for rapid source switching, UPS for instantaneous backup, and fault-tolerant switchgear to isolate faults and maintain power continuity. Such systems are engineered to deliver seamless transitions between utility and backup power sources, ensuring critical IT infrastructure receives stable, conditioned power regardless of external disturbances or grid instability.

Optimal Configuration Strategies

Proper configuration of UPS and PDU systems is crucial for maximizing their benefits. Strategic deployment ensures seamless power delivery and enhanced redundancy.

Connecting Power Distribution Units to UPS Outlets

Connecting PDUs to UPS outlets requires careful planning.

• Electrical Design & Load Management: Ensure the PDU input matches the UPS output voltage and phase. Avoid overloading the UPS by calculating the total load and factoring in future expansion. For three-phase systems, balance loads evenly across phases to prevent imbalance and overheating.
• Connection Strategy: Always connect the UPS output to the PDU input. Then, distribute power to equipment. Use dedicated circuits and avoid daisy-chaining PDUs or plugging a UPS into a PDU unless specifically designed for it. For critical systems, implement redundant paths using dual PDUs powered by separate UPS units for A/B power feeds.
• Protection & Monitoring: Utilize PDUs with built-in surge protection. Opt for intelligent PDUs offering per-outlet monitoring, remote access, and environmental sensors. Adhere to IEEE 1584 and IEEE 519 guidelines to mitigate arc flash risks and harmonic distortion.
• Infrastructure & Compliance: Employ labeled, color-coded cabling and maintain clear pathways to prevent confusion and airflow obstruction. Design according to TIA-942, EN 50600, ASHRAE 90.4, and UL 1449 standards. If using lithium-ion UPS batteries, consider their longer lifespan and reduced cooling needs.
• Maintenance & Scalability: Schedule regular UPS and PDU load tests to validate failover and runtime. For large facilities, use Remote Power Panels (RPPs) and busways for flexible expansion. Maintain updated schematics and load profiles for troubleshooting and audits.

Redundant Power Paths with Power Distribution Units and UPSs

Establishing redundant power paths is a cornerstone of high availability. A primary power source, such as the utility grid, feeds power to one PDU. This PDU then distributes power to one power supply of each piece of equipment. A secondary power source, often a UPS, feeds power to a second PDU. This second PDU distributes power to the other power supply of each piece of equipment. This dual-PDU setup creates two independent power paths, achieving 2N redundancy. This ensures continuous operation even if one path fails. The UPS serves as a backup power source, providing power during outages to allow for graceful shutdowns or to bridge the gap until a generator takes over. It is typically connected to one of the redundant power paths, often as the secondary power source, ensuring continuous power to equipment even if the primary utility fails. Three-phase UPS systems stabilize incoming power, protect against fluctuations and outages, and ensure a continuous, clean power supply. This enables seamless transitions between primary and backup sources. PDUs at the rack level extend this stabilized power from the UPS to individual servers. They often feature metering and monitoring capabilities for optimized power usage and issue identification. A highly effective redundancy strategy involves using dual-corded servers. These servers can draw power from two separate sources. This, combined with redundant power distribution paths, ensures power can be instantly rerouted if one source fails, minimizing downtime and protecting sensitive IT equipment.

Smart Power Distribution Unit Integration with UPS Monitoring

Integrating smart PDUs with UPS monitoring systems provides comprehensive power management. Smart PDUs offer remote monitoring of power consumption at the outlet level. They also provide environmental sensing. When combined with UPS monitoring, administrators gain a complete view of power status. This allows for proactive management, remote power cycling of devices, and automated responses to power events. This integration enhances operational efficiency and reduces the need for on-site intervention.

Benefits of an Integrated Approach

Combining UPS and PDU systems offers significant advantages for any organization. This integrated approach creates a robust and efficient power infrastructure.

Enhanced Uptime and Reliability

An integrated UPS and PDU system dramatically improves uptime and reliability.

E-commerce platforms have achieved over 99% uptime by utilizing dual power supplies and redundant PDUs. Financial institutions protect sensitive transactions and increase uptime by employing dual power paths. Data centers deploy remote PDUs equipped with environmental sensors and alarms to enable rapid response to potential issues. Combining dual input PDUs with robust monitoring and backup systems creates a resilient infrastructure that supports business continuity. Redundant power solutions eliminate single points of failure by providing alternate power paths, ensuring continuous operation even if one source fails. Redundant configurations (e.g., N+1 or 1+1) significantly improve uptime by ensuring a backup is always available. Automatic Transfer Switches (ATS) prevent downtime by ensuring equipment remains powered during a source change. They operate without manual input and reduce human error. Integration of dual input PDUs with UPS and generators ensures continuous power even during long outages. The ATS seamlessly switches between sources.

Improved Power Management

The combined system offers superior power management capabilities. Advanced monitoring tools track power usage, temperature, and humidity in real-time. Remote management features allow for proactive maintenance and early problem detection. This granular control helps optimize energy consumption, identify potential issues before they escalate, and streamline maintenance tasks. Load balancing across dual inputs reduces strain on each circuit and enhances system stability.

Scalability and Flexibility

An integrated UPS and PDU solution provides excellent scalability and flexibility. Organizations can easily expand their power infrastructure by adding more PDUs or UPS modules as their needs grow. This modular approach allows for cost-effective expansion without overhauling the entire system. It also provides the flexibility to adapt to changing power requirements and technology advancements.

Making the Right Choice for Your 2025 Power Needs

Selecting the correct power solutions for 2025 requires careful evaluation. Businesses must assess their specific requirements to ensure reliable and efficient operations. This involves understanding equipment needs, available resources, and future growth.

Assessing Your Power Requirements

Businesses must first understand their power demands. This assessment guides the selection of appropriate PDUs and UPSs.

Criticality of Equipment

Organizations identify their most critical equipment. These devices cannot tolerate any power interruption. Servers, network switches, and medical devices often fall into this category. Less critical equipment might only need basic power distribution.

Power Load and Capacity

Businesses calculate the total power consumption of their equipment. They measure the power load in watts or VA. The chosen UPS and PDU must have sufficient capacity to handle this load. Always allow for some headroom for future additions.

Desired Runtime

The desired runtime specifies how long equipment needs to operate during a power outage. A short runtime might only allow for graceful shutdowns. Longer runtimes keep critical systems operational for extended periods. UPS battery capacity directly impacts runtime.

Factors to Consider

Several practical factors influence the final decision. These considerations help tailor the power infrastructure to specific business needs.

Budget Constraints

Budget plays a significant role in power solution selection. Basic PDUs are more affordable than advanced UPS systems. Businesses must balance cost with the level of protection and features required. Investing in quality equipment often prevents costly downtime later.

Space Availability

Physical space in server racks or IT closets is often limited. Rack-mount PDUs and compact UPS units help maximize space efficiency. Businesses measure available space before purchasing equipment.

Management and Monitoring Needs

Some businesses require advanced power management. They need remote monitoring, control, and automated alerts. Smart PDUs and network-enabled UPSs offer these capabilities. Basic solutions might suffice for simpler setups.

Future Expansion Plans

Consider future growth when planning power infrastructure. Modular UPS systems and scalable PDU solutions allow for easy expansion. This prevents costly overhauls as power demands increase.

Real-World Scenarios for Power Distribution Unit and UPS Implementation

Different environments have unique power requirements. These examples illustrate how businesses implement PDUs and UPSs.

Small Business Server Room

A small business server room typically uses a line-interactive UPS. This UPS protects a few servers and network devices. A metered PDU distributes power from the UPS to the equipment. This setup provides essential backup and monitoring.

Enterprise Data Center

Enterprise data centers demand high availability. They often deploy online double-conversion UPS systems in redundant configurations. Switched or monitored PDUs distribute power within racks. These PDUs offer granular control and detailed power usage data.

Remote Office Setup

Remote offices benefit from compact, easy-to-manage power solutions. A small line-interactive UPS protects critical workstations and network gear. A basic PDU provides multiple outlets for various devices. Remote monitoring capabilities are often valuable here.

PDUs and UPSs complement each other for robust power. A UPS provides critical backup and power conditioning. A PDU efficiently distributes that conditioned power to equipment. This integrated approach is crucial for modern power management. It ensures continuous operation and protects sensitive IT infrastructure. Businesses must assess their needs, plan for redundancy, and leverage smart technologies. This secures reliable power in 2025.

FAQ

What is the primary difference between a PDU and a UPS?

A PDU distributes power to multiple devices. It acts like an advanced power strip. A UPS provides backup power during outages. It also protects equipment from power fluctuations.

Can a PDU provide backup power during an outage?

No, a PDU does not provide backup power. It only distributes power from its source. If the main power fails, devices connected only to a PDU will lose power.

What is the main purpose of a UPS?

A UPS ensures continuous power for critical equipment. It uses batteries to supply power when the main source fails. This prevents data loss and operational downtime. It also conditions incoming power.

Do businesses need both a PDU and a UPS?

Yes, businesses often need both. A UPS protects equipment and provides backup power. A PDU efficiently distributes that protected power to many devices within a rack. They work together for maximum reliability.

What are the common types of PDUs?

Common PDU types include basic, metered, monitored, and switched. Basic PDUs distribute power. Metered PDUs show local power usage. Monitored PDUs offer remote monitoring. Switched PDUs allow remote outlet control.

What are the main types of UPS systems?

The main UPS types are Standby (Offline), Line-Interactive, and Online (Double-Conversion). Standby is basic backup. Line-Interactive regulates voltage. Online provides continuous, clean power with no transfer time.

How do PDUs and UPSs work together in a data center?

A UPS provides conditioned, backup power. A PDU then distributes this power efficiently to all the servers and networking equipment in a rack. This combination creates a robust and resilient power infrastructure.

Why is power conditioning important for IT equipment?

Power conditioning protects sensitive IT equipment. It filters out voltage spikes, sags, and electrical noise. These disturbances can damage hardware, corrupt data, and cause system instability. A UPS often provides this conditioning.
